On this page we have added custom designed prefab style "Architectural PDF Horse Shed Plans" that you can now purchase from us. Pleae keep in mind that plans on these page are not for our standard prefab run in sheds and shedrows that we sell. These are custom designed sheds with higher walls, different roof angles and heavier rafters and headers. In other words, sligthly taller to accommodate larger horses and designed to withstand more snow load and wind load.
These are not construction plans and do not include any instructions. Also, since none of the plans on these page come with a materials list, your builder will have to figure all of the materials needed and how to build these sheds. We'll be adding more shed plans in the near future.

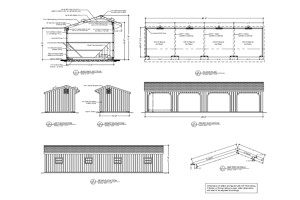

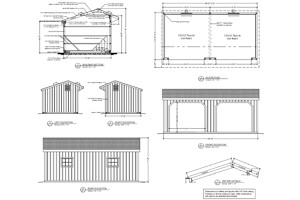

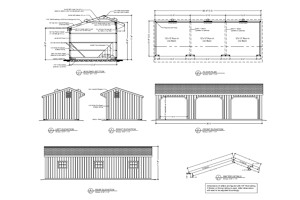

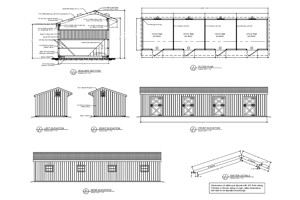

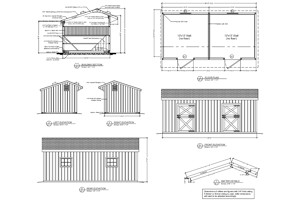

All of the plans offered here are simple "Single Page PDF Plans" drawn on 17"x11" size paper. After you place an order, the plan will be emailed to you within 24 hrs.
Plans are designed to obtain bids and estimates. These plans are not done by a licensed engineer or architect and are not designed to meet all local codes in every state or jurisdiction. Our plans are NOT SEALED. Your local engineer might still need to modify the plan to meet your local code requirements and to seal it. Plans are emailed in PDF format, not mailed. What you see on each "Preview" plan is what will be emailed to you. You will need to find a place to print it out on 17"x11" size paper.
Materials List not available for any of shed plans
All measurements are in Imperial Units
Plans are emailed in PDF format
Plans are not sealed
By purchasing or using any of our plans listed here you agree not to hold Keystone Barn Supply, LLC, it's owners and/or plan designers responsible for any mistakes or incorrect design. You also agree that Keystone Barn Supply LLC, its owners or plan designers will not be, under any circumstances liable to the consumer or end user for any incidental, consequential, special, exemplary, or punitive damages arising out of the use of these plans. You MUST ALWAYS consult with your local engineer and your contractor before using any of our plans, ordering materials or doing any construction work.
