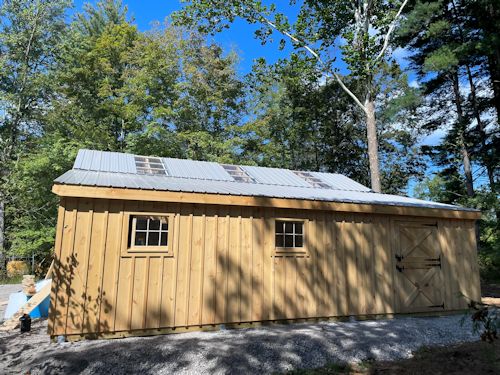

Low Profile Modular Horse Barns
Are you in search for quick and affordable way to provide stalls for your
horses? Our Low Profile modular barn design could be just the solution you
are looking for.
When comparing construction of different center aisle horse barns,
building one of our Keystone Low Profile Modular Horse Barns couldn't be any
easier. From order to completion, it usually takes anywhere from 10-12
weeks* (call for current lead time) since most of the work is done right in the shop and on-site assembly
only takes 1-2 days*. In addition, this quick turn-around and the fact
that barn sections are manufactured in the shop, makes this Low Profile barn
design more affordable. In fact, this kind of barn often costs around
10% - 20% less (locally built) compared to regular horse stable built on
site. If you are interested in one of these buildings, please call us
for a quote.
Set-Up of 30'x28' Low Profile Modular Barn
Standard Construction:
- Pressure Treated 6x6 Grade Beams
- SYP 4x4 Posts with 2x4 Oak Framing
- 1x8x48" Vertical Oak Kickboards
- Vertical Pine Board & Batten Siding
- 2x6 SPF Rafters 16" o.c.
- 7/16" OSB Roof Sheathing with Felt
- Limited Lifetime Architectural Asphalt Shingles
Standard Features:
- One 6-lite Window Per Stall
- One 4'x7' Stall Sliding Door Per Stall

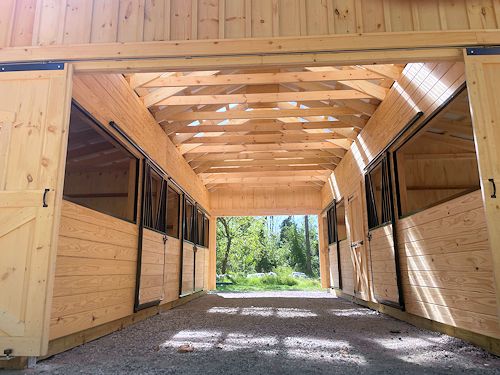

- 2x8 T&G #2 SYP Stall Fronts
- Black Powder Coated Stall Front Grills
- Split Center Aisle Sliding Door at Each End
- 1-Service Door & 1-Window in Tack Room
- No Loft. Standard Roof pitch is 3:12
NOTES:
- Final price of barn will be quoted based on size, options, location
and travel distance
- Out of state delivery and assembly might significantely increase
price of barn
- Modular barn must be placed on concrete pillars foundation
- Site preparation and foundation must be done prior to delivery of
barn sections
- Size of rafters, headers and footers might need to be changed to
comply with local codes
- Barn is designed for 35-PFS snow load and 100-MPH wind load.
Heavier snow or wind loads will require rafters and headers upgrade
(extra costs will apply)
- *The actual time of barn completion and set-up will depend on
weather conditions.
